'freeCAD' allows users to create and manipulate assemblies of parts. The parts are simple 3D solids, which can be connected by joints, constraints, contacts, motors, actuators, springs, dampers, forces, torques or gravity. The parts and connections define the structure, mechanism or machine of interest. Both open and closed 3D loops are permitted. 'freeCAD' performs full Multibody Dynamics analysis on the assembly to predict the motion according to Newton's Laws. Animation using the simulated data produces realistic dynamic behavior of the system.
Users can study the mechanical dynamics in the form of plots and tabular output. XY plots can be zoomed and set to equal scales. Data series available include linear and angular displacements, velocities, accelerations, forces, torques, momenta and kinetic energies. Acceleration data include transverse, centripetal and Coriollis accelerations. Users can view forces and torques from joints, constraints, actuators, springs, dampers, applied forces and inertia.

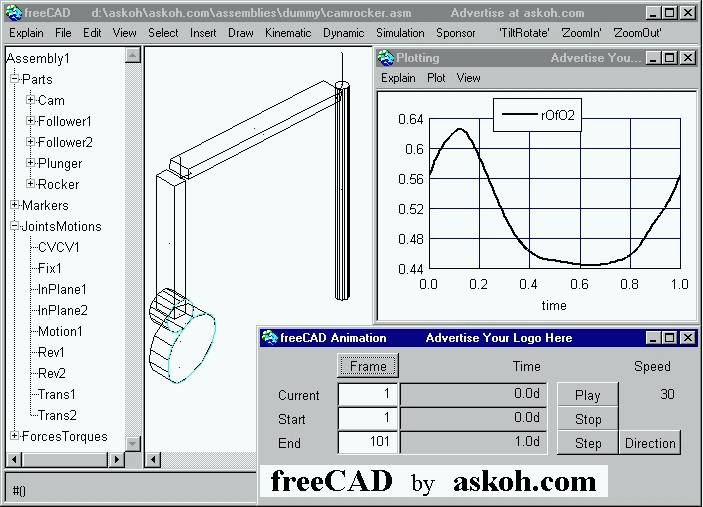

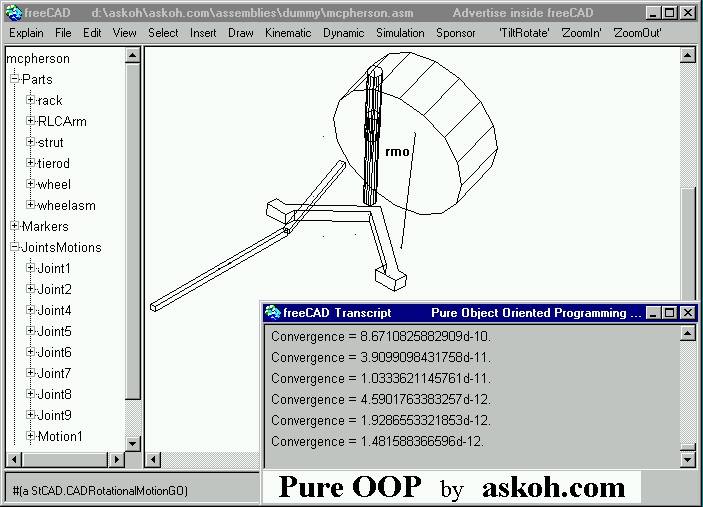

Screen Shot 1 Screen Shot 2
Example Assemblies
The Internet Resource for
Engineering Professionals To try 'freeCAD' in Windows 95, 98, ME, NT, 2000, XP with 64MB or
more RAM:
Create a directory, say, C:\freecad7 for the downloads.
Download freecad7.zip (6.02 MB
(6,313,137 bytes)).
Download patch70.zip (1.47 KB, 1512
bytes).
For alternative download web sites, go to the reviews section above.
Unzip freecad7.zip, preserving subdirectories, into the same
directory.
Unzip patch7*.zip, preserving subdirectories, into the same directory.
Let it overwrite other files.
Double click on freecad7.exe to launch the application.
If double clicking doesn't work, create a shortcut containing the
full command below:
C:\freecad7\freecad7.exe C:\freecad7\freecad7.im
The working directory should be C:\freecad7
Then double click the shortcut.
Please read the Known
Problems
To try 'freeCAD' in Macintosh PowerPC:
Create a folder, say, freecad7 for the downloads.
Download freecad7.zip (6.02 MB
(6,313,137 bytes)).
Download patch70.zip (1.47 KB, 1512
bytes).
Locate and download PowerMac virtual machine at http://www.cincom.com/scripts/smalltalk.dll/downloads/index.ssp?content=visualworks
Open Stuffit
Expander 5.5's preferences dialog to Cross Platform options, and
select
"Never" for "Convert Text Files to Macintosh text format".
Then for the Destination options, select
"Same as original" for "Destination"
"Never" for "Create Surrounding Folder".
Decompress freecad7.zip, preserving subdirectories, into the same
folder.
Decompress patch7*.zip, preserving subdirectories, into the same
folder. Let it overwrite other files.
Decompress virtual machine file into the same folder.
From subfolder freecad7:bin:powermac, move the application visual,
StdLibC and Netmanage into folder freecad7
In folder freecad7, drag freecad7.im and drop onto visual
to launch the application.
Alternatively, create a alias containing the full command below:
visual freecad7.im
The working folder should be freecad7
Then double click the alias.
You may delete subfolder freecad7:bin:powermac and its remaining
contents.
Please read the Known
Problems
To try 'freeCAD' in Linux PC:
Create a directory, say, /home/username/freecad7 for the downloads.
Download freecad7.zip (6.02 MB
(6,313,137 bytes)).
Download patch70.zip (1.47 KB, 1512
bytes).
Locate and download Linux virtual machine at http://www.cincom.com/scripts/smalltalk.dll/downloads/index.ssp?content=visualworks
Decompress freecad7.zip, preserving subdirectories, into the same
directory.
Decompress patch7*.zip, preserving subdirectories, into the same
directory. Let it overwrite other files.
Decompress virtual machine file into the same directory.
From subdirectory /home/username/freecad7/bin/linux86, move the
executable visual into directory /home/username/freecad7
Repeat for file herald.so.
Change directory to /home/username/freecad7
In a terminal window, execute: ./visual freecad7.im
Alternatively, create a script containing the full command below:
/home/username/freecad7/visual
/home/username/freecad7/freecad7.im
The working directory should be /home/username/freecad7
Then double click the script.
You may delete subdirectory /home/username/freecad7/bin/linux86 and
its remaining contents.
Please read the Known
Problems
To try 'freeCAD' in other Unix's:
Follow instructions for Linux PC.
Locate and download your virtual machine at http://www.cincom.com/scripts/smalltalk.dll/downloads/index.ssp?content=visualworks
Version check:
Since 'freeCAD' can be downloaded from many locations, it is good to
check that you have the latest version.
Inside 'freeCAD', click Explain/About/freeCAD/ to locate the creation
date:
'freeCADx' was created on yyyy/mm/dd.
Verify that you have the latest copy by comparing with the creation
date published at:
http://www.askoh.com
Also check that your have the latest patch for the version.
Quick test 'freeCAD':
Click File/Open/Assembly/ to get a list of example assemblies.
Choose one, say, fourbar.asm
Click View/Tilt Rotate/ to center the model. Drag the handles
to tilt and rotate the 3D assembly.
If necessary, Click Edit/Marker Size/ to set marker sizes suitable
for the drawing.
Click Simulation/Animation/ to get the animation dialog. Click Play
to start animation.
You can click any View menu item and drag the tilt and rotate handles,
even during animation.
Close animation window when done.
Please report problems to
A-S Koh
askoh@askoh.com
Quick start:
Click Explain/Quick Start/ to learn how to build a model from
scratch. Together, the tutorials demonstrate the available features
in 'freeCAD'.
The motion simulation theory is in the journal paper:
Koh, A-S., and Park, J-P. "Object Oriented Dynamics Simulator,"
Computational Mechanics, Jun 1994, 14(3) 277–287.
All Platforms:
If an error message comes up, click on "Continue" to let Smalltalk
recover. You can usually continue if you avoid the offending steps.
Every error is logged in a file called error.log. Email that file to
the author for debugging. Patches and workarounds will be posted as
soon as possible. Thank you in advance.
'Invalid zip file'.
Check that the download files have the exact number
of bytes shown above.
'freecad7.im cannot be opened'.
Use Winzip to
unzip freecad7.zip and patch7*.zip.
'ERROR_PATH_NOT_FOUND'.
Unzip did not preserve subdirectories. Reunzip,
preserving subdirectories. Otherwise move all *.sdoc files into a
subdirectory
/resource/explain
'ERROR_ACCESS_DENIED'.
'freeCAD' cannot run from CD-ROM or write protected
media. Copy the freecad7 directory and its contents to a writable
hard disk.
'Enter an Integer' prompt regardless of what you input.
Download freecad7full.zip
Decompress it and let it over freecad7.im.
On Windows:
Right clicking on some mice does not bring up the correct menu. Try
right clicking while holding the ctrl key down.
On Windows 98, the help dialog for motion and force-torque dialogs
will not close when the X button is clicked. Close with ESC
key.
On machines with low memory, desktop icons may become white when
'freeCAD' exits. Reboot to recover. Internet Explorer 5.5 seems to
be the cause. Upgrade to Internet Explorer 6.
If resizing the window is very slow to repaint, disable 'Show window
contents while dragging' found in Start/Settings/Control
Panel/Display/Effects.
On Macintosh:
'Unhandled exception: String format error...'.
Download freecad7full.zip
Decompress it and let it over freecad7.im.
On Linux:
'Out of Memory' error at startup. The probable cause is having too
many fonts. Execute with the following command to start freeCAD
./visual -h10M freecad7.im
Animation is jerky when the graphics window is very large. Reduce the
window size.
Please report problems to
A-S Koh
askoh@askoh.com
To pose a question for general viewing, submit it to the newsgroup alt.cad. Prefix the question with [freeCAD] to distinguish it from other questions on different topics.
You can email your questions to:
A-S Koh
askoh@askoh.com
Sponsors can advertise on the 'freeCAD' web site and inside the 'freeCAD' program to promote their products, services, publications and job opportunities. There will be no more than ten advertisers inside the program at any one time. Each advertiser gets equal time to show his/her messages at various points (title bar, menu item, dialog boxes, status bar) in the program as the users use the program. Advertisers can change their messages every quarter when new releases of 'freeCAD' are made. For the price of US$500 per month, sponsors can advertise to over 6000 new users of 'freeCAD' per month. In addition, continuing users of 'freeCAD' will still see their advertisements.
Sponsors can also request for customizations of 'freeCAD' and other consultancy services from the author. A-S Koh's curriculum vitae (resume)
For more information, please contact A-S Koh at askoh@askoh.com
